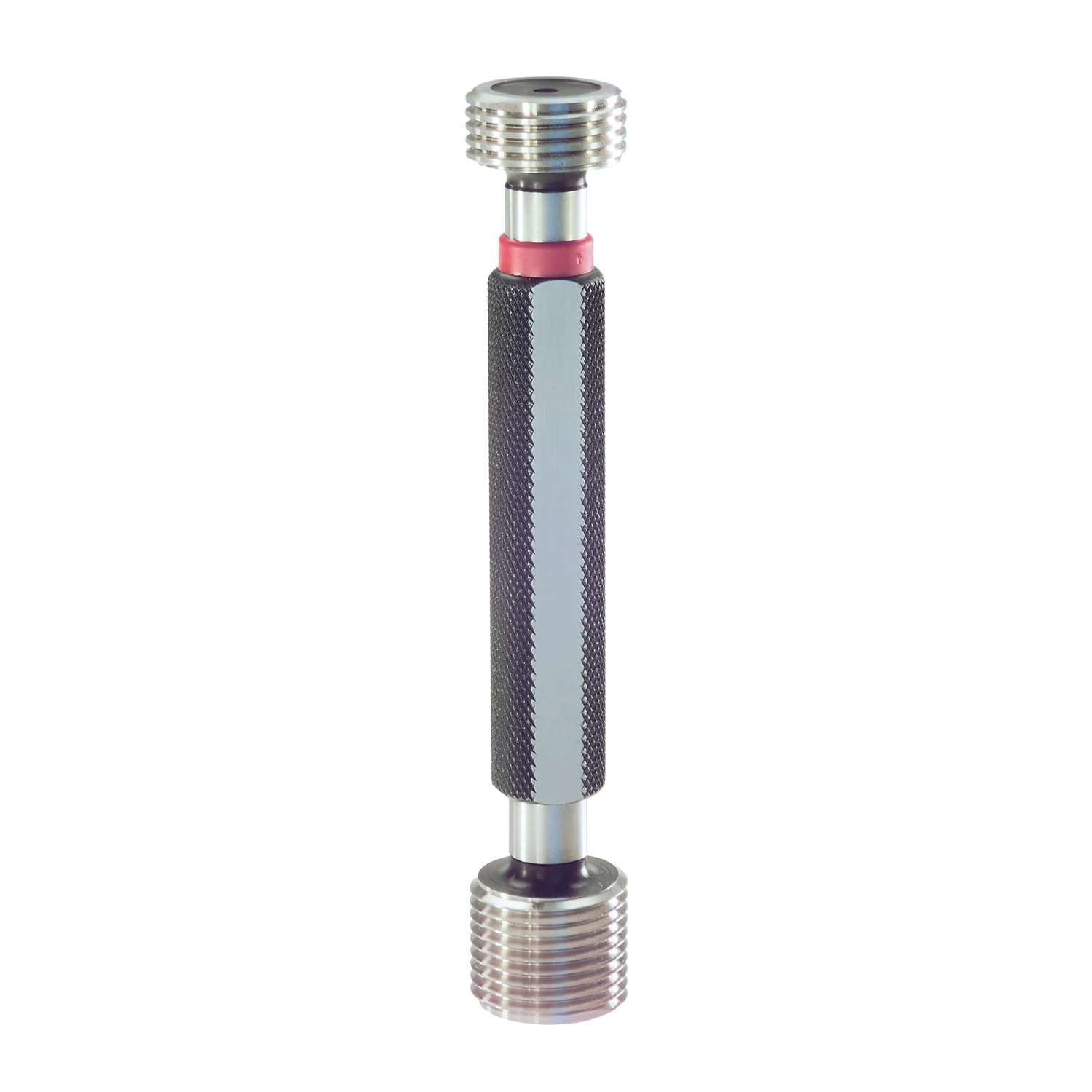

Calibri a tampone "Passa-Non Passa" per filettatura UNF, passo fine JBO - J905

CALIBRI A TAMPONE
PER FILETTATURA UNF, PASSO GROSSO ANSI B 1.1

Tipo Passa/Non Passa

Tolleranza 2B

Specifiche:

Ø nominale        Filetti per pollice nr.

UNF 0                   80

UNF 1                   72

UNF 2                   64

UNF 3                   56

UNF 4                   48

UNF 5                   44

UNF 6                   40

UNF 8                   36

UNF 10                 32

UNF 12                 28

UNF 1/4                28

UNF 5/16              24

UNF 3/8                24

UNF 7/16              20

UNF 1/2                20

UNF 9/16              18

UNF 5/8                18

UNF 3/4                16

UNF 7/8                14

UNF 1                   12

UNF 1 1/8             12

UNF 1 1/4             12

UNF 1 3/8             12

UNF 1 1/2             12
